SPECIFICATIONS

Brand Name: NONE

Certification: CE/FCC/ROHS

Dimension: 158*125*47mm

Fiber Type: ODC /LC Option

Function: Video/PGM/Tally/Remote

High-concerned chemical: none

Item Type: cable

Model Number: EFP-BSVM

Origin: Mainland China,Mainland China

Product name: EFP Camera Control System

Transmission Distance: 300M~10KM

12G EFP To Fiber Camera Systems For Live Event, ENG, ESP ( Includes Camera Optic Adaptor and Base Station)

Contact Lari directly with any requirements — there may be a surprise!

WhatsApp/Wechat: +86 158 7552 0146

Email: sales01@holinktech.com

Facebook: Lari Xiao

Product Description

This product is specially designed for SONY cameras and has excellent image quality for multi-camera production. The scene brings an unparalleled convenience experience, especially suitable for a multi-camera production environment in the field of broadcasting.

With the multi-camera collaborative setup, you will fully unlock the powerful performance advantages of Sony full frame and S35 cameras: the charming shallow depth of field effect can accurately focus on the subject while blurring the background, creating a professional feel akin to cinematography; the wide and unparalleled dynamic range ensures that every detail, whether highlights or shadows, is captured with exquisite detail; and the vibrant color gamut perfectly reproduces true colors, making the image come alive.

Whether it's a live broadcast that's exciting, a concert that's moving, a TV show that's gripping, or any other fast-paced, multi-camera collaboration. It can easily handle demanding production projects and deliver stunning film-level visual effects.

From the perspective of core functions, this product is ingeniously designed with a simple and highly flexible operation
interface. Just one optical fiber (ODC) connection is required to adapt to almost all transmission systems, greatly simplifying the complex wiring process and ensuring stable and efficient signal transmission. Moreover, it thoughtfully supports unified adjustment and precise matching of image parameters for multi-cameras. With Sony’s professional RCP (Remote Control Panel), you can remotely control and finely adjust the image at any time, truly achieving seamless collaboration across multiple camera positions, making creation more effortless.

Functions

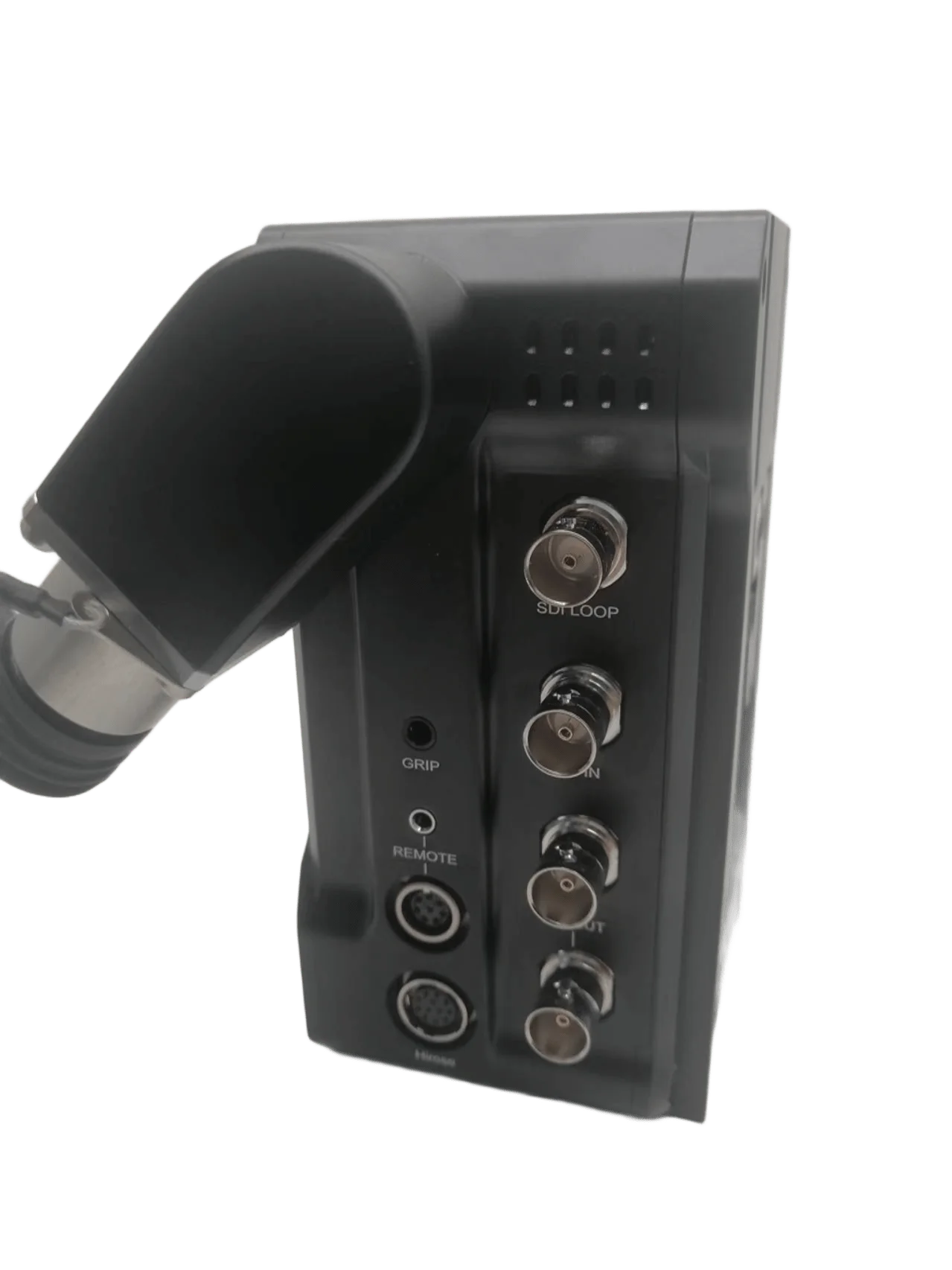

1 channel forward 12G SDI video with local loop out

1 channel reverse PGM

1 channel 8Pin REMOTE

1 channel reverse 2.5mm REMOTE

1 channel 3.5 Grip

1 channel 12P Hirose

ODC Fiber

V Mount

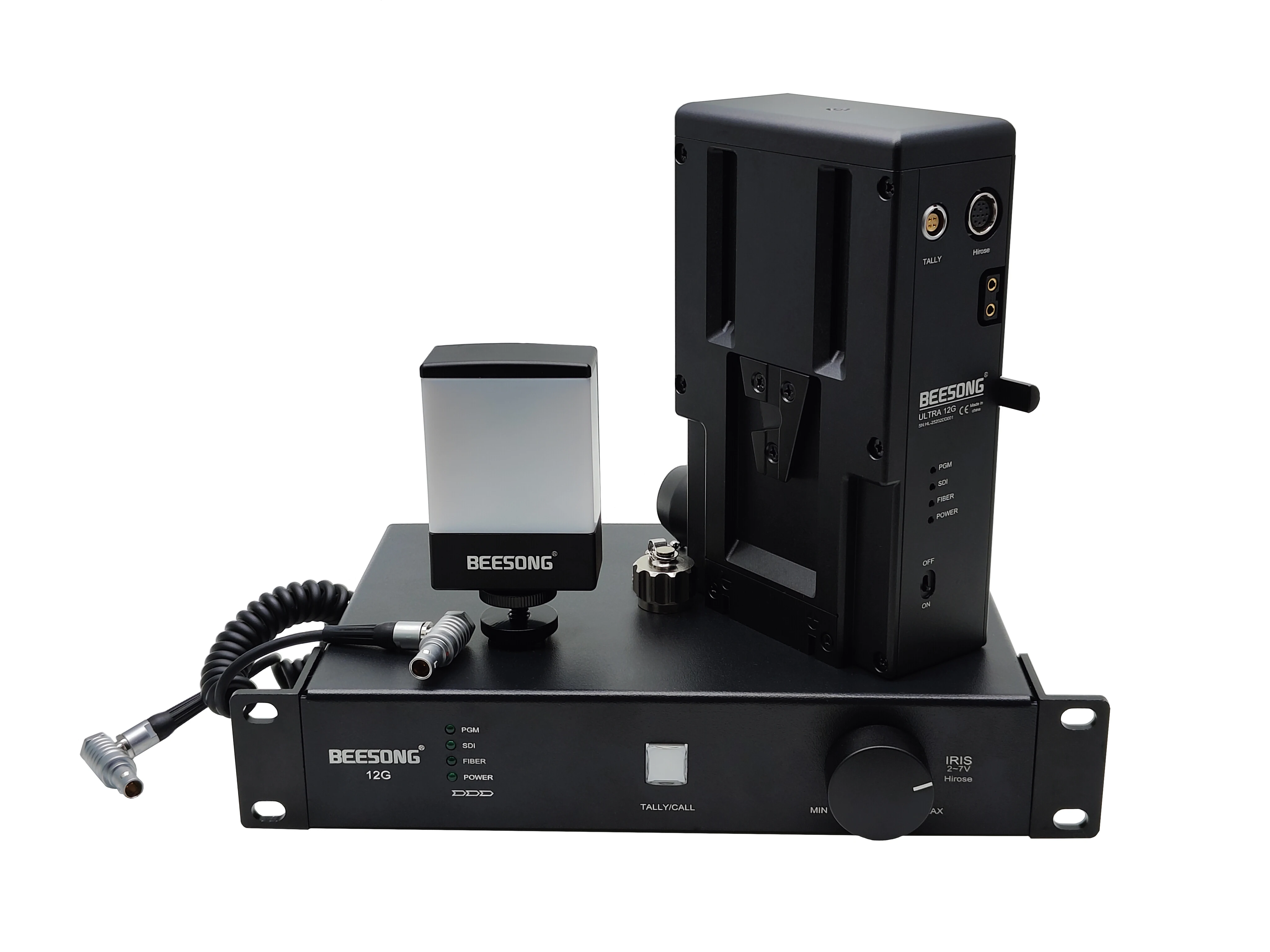

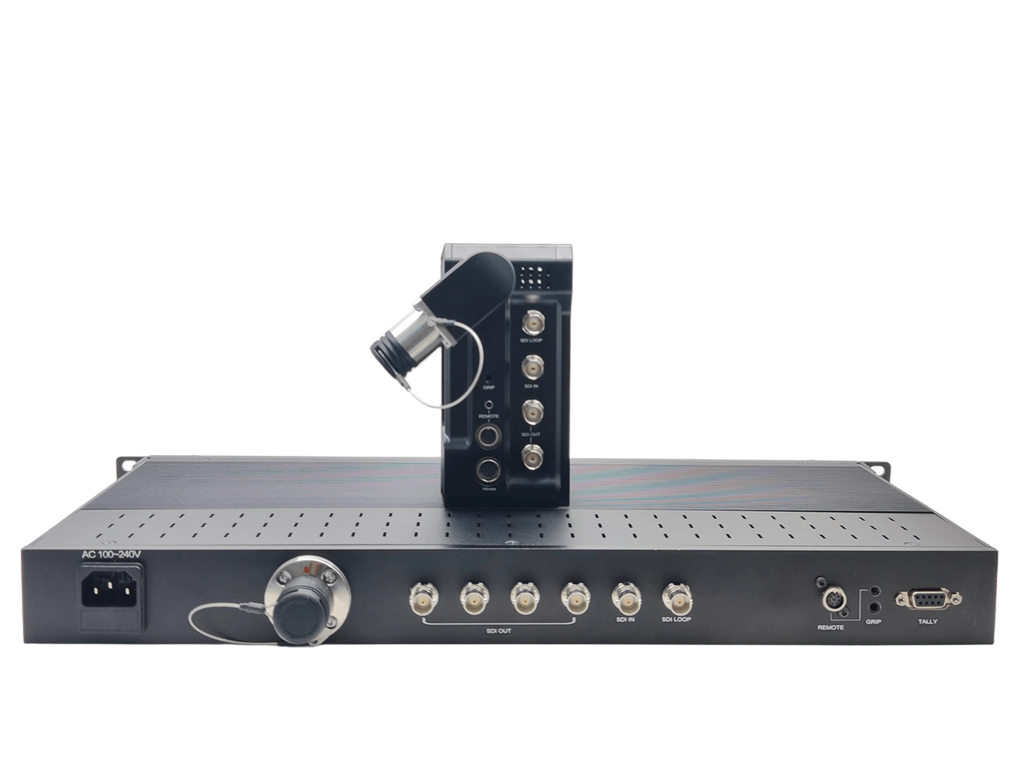

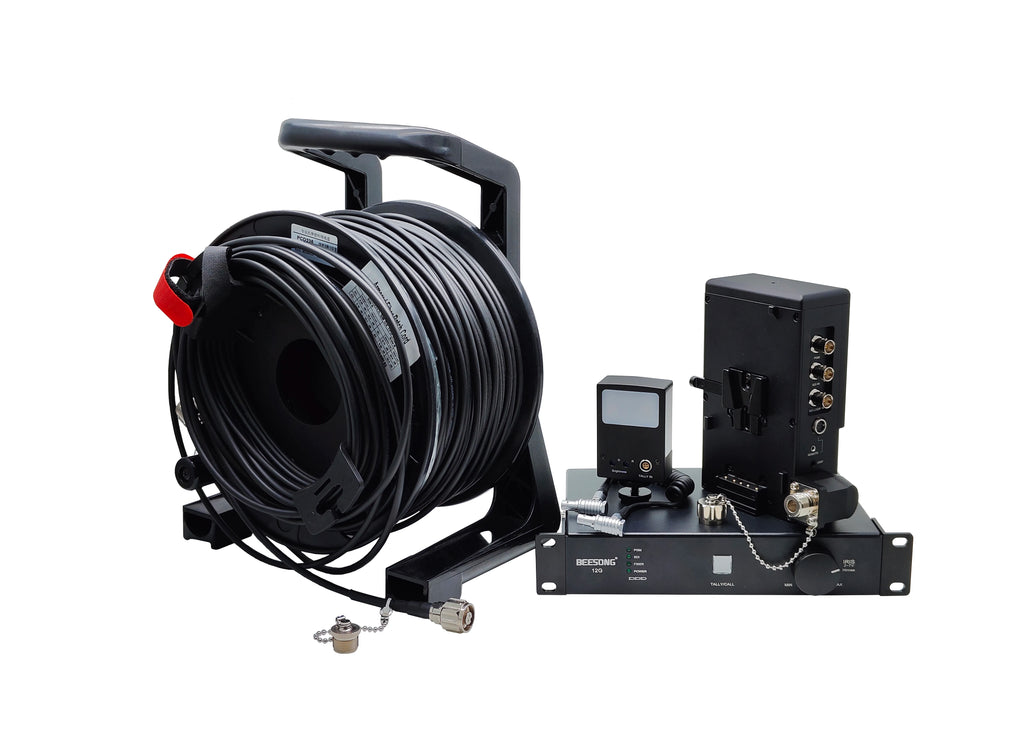

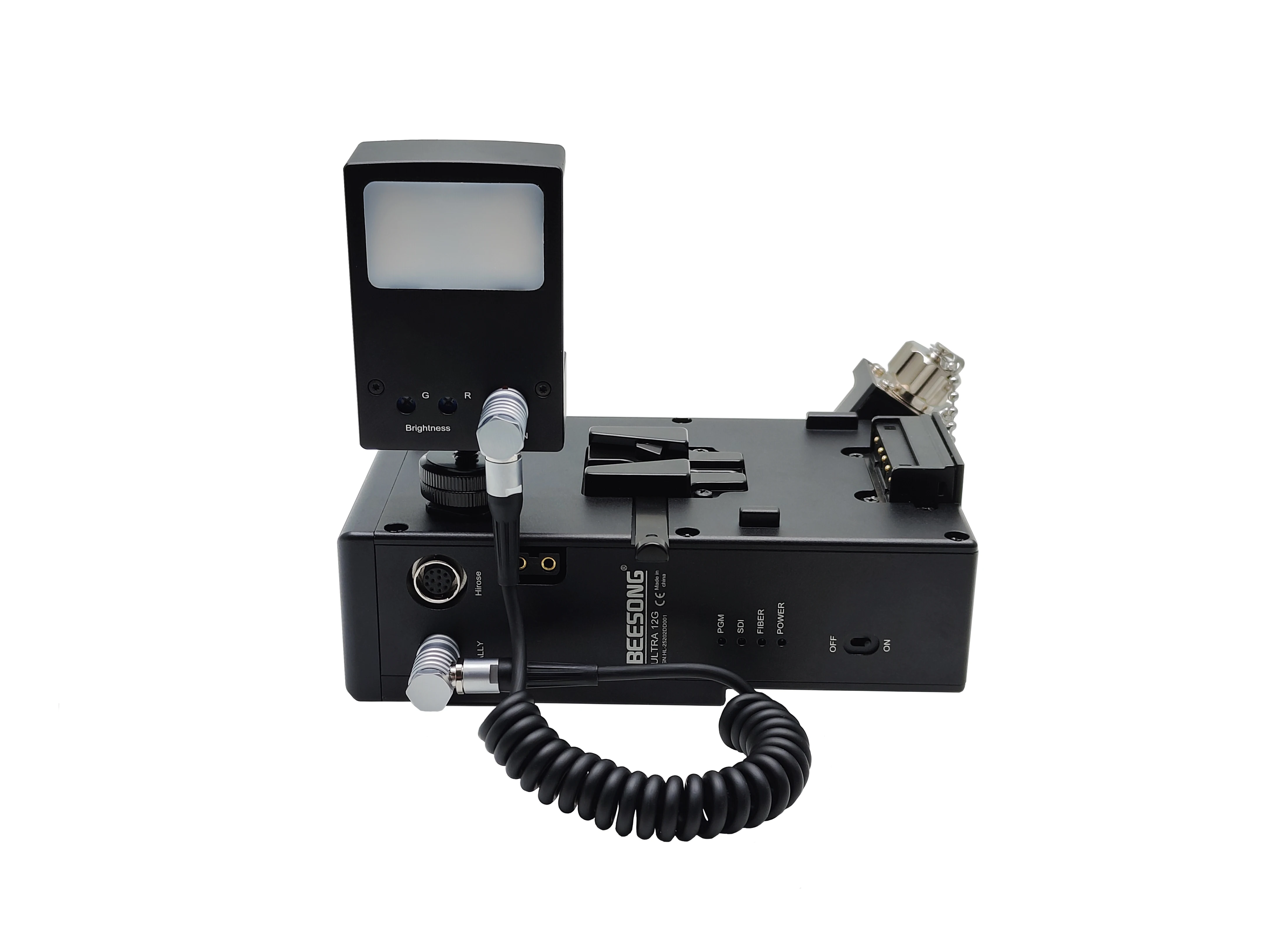

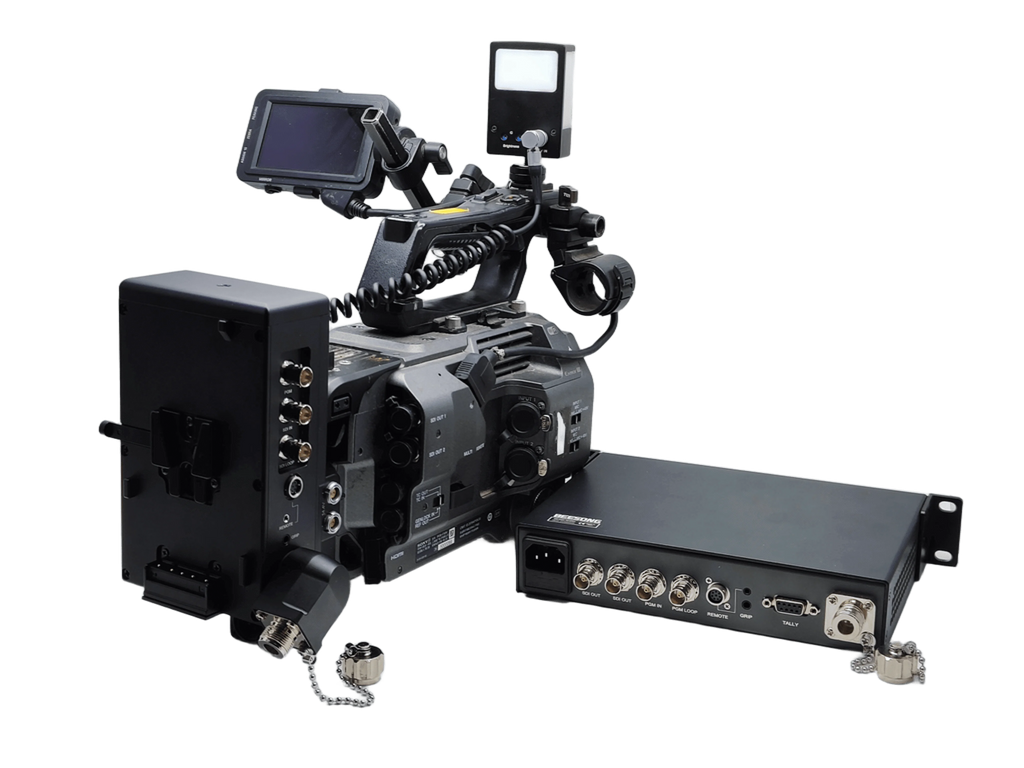

Product Pictures

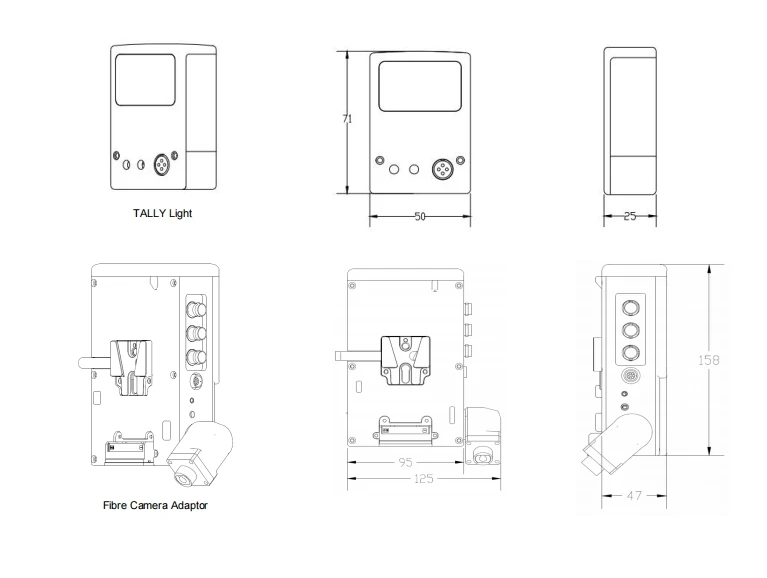

Size Details

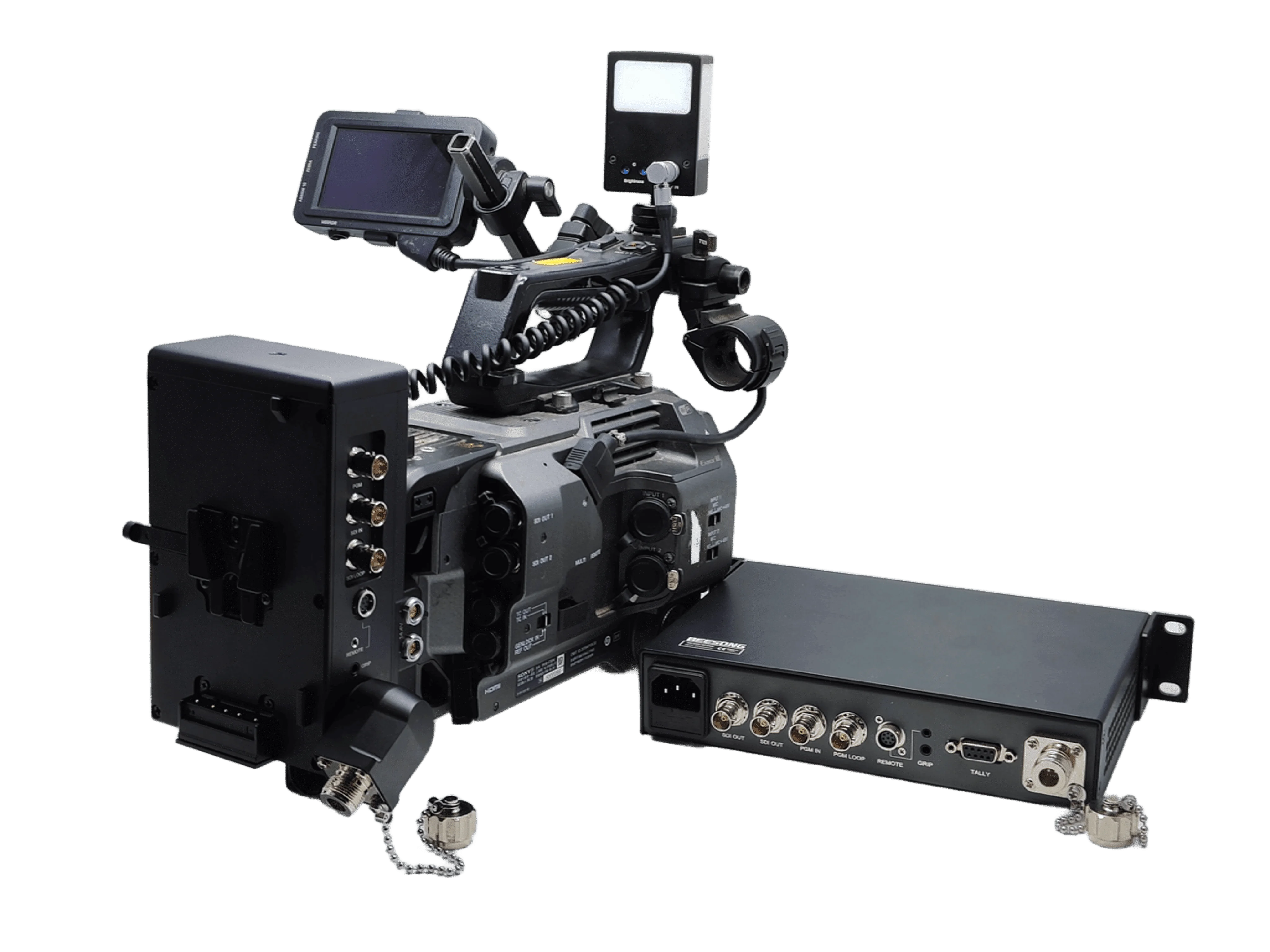

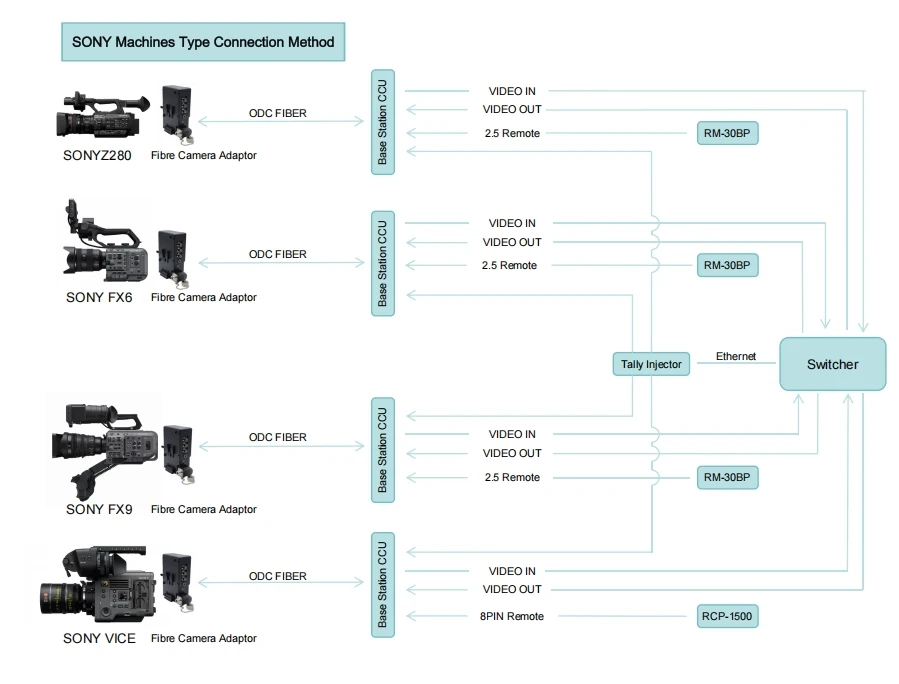

Connection Diagram

Features

Technical Characteristics

1. Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD);
compatible with DVB-ASI and AES10 (MADI);
2. Clock recovery function; (the clock restorer weakens high-frequency jitter and uses pure low-jitter clocks to regenerate data completely);
3. The clock restorer is locked to 11.88Gb ps, 5.94Gb ps, 2.97Gb ps, 1.4 85Gb ps or 1.001 fractional sub-rate and 270Mbps SMPTE rate;
4. The signal input has an automatic cable equalization (EQ) function, and the output has a drive (CD) function;
5. Support plug-in SFP optic modules, which can be replaced according to the actual needs of the site and different distances or interfaces corresponding optic modules; Support single-mode single fiber/dual-fiber transmission distance 10KM (default);
6. Support status light display;
7. Support a wide voltage 9-18V power supply, power plug with lock to prevent falling off during operation;
8. Plug and play, no debugging;

Application:

Broadcasting Video Transmission

High Quality HD-SDI Video Monitoring in Traffic Operation (ITS)

High Quality Images METRO Security

Avionic Surveillance System

Oil & Gas Perimeter Intruder

Detection Military Applications Premise Networks

Reminder

1. It is recommended to use the short optical fiber link for the first time to ensure that all the functions of the equipment are normal, and then do long-distance transmission

2. The signal of the fiber optic converter can be output to the power amplifier, but the audio source of the power amplifier can not output the audio source signal to the fiber optic converter, otherwise the equipment will be burned

Troubleshooting of indicator

1: Power indicator is abnormal (POWER)

Answer: Check whether the power adapter meets the equipment requirements or the power adapter fails

Whether the socket is not tight or loose

2: Fiber indicator is abnormal (FIBER)

Answer: Check whether the optical fiber interface is loose and not plugged in

Check whether the optical fiber is too attenuated

3: Video indicator is abnormal  (VIDEO)

Answer: Check the signal source

Replace the video cable

4: Data indicator is abnormal (DATA)

Answer: Check the COM port, whether the baud rate is consistent

Check whether the serial port cable is connected backward

Attention

Lightning protection, static electricity and grounding:

It is recommended that when install the device, consideration should be given to the impact of grounding by lightning, and take prevention measures. Strong static electricity will damage the optical device and data chip in the equipment. It is recommended that when plug/unplug the data port of the optical converter, please disconnect the power supply of the optical converter first.

Fiber and optical components:

Be careful when plugging the optical fiber as optical components of the optical converter is very fragile, and it should avoid causingdamage to the optical components. It should be noted that the light source produced by the optical components of the optical converter will be harmful to eyes, so do not have direct eye contactwith the optical components of optical converter. If you need to detect the optical power of the optical converter, please use the optical power meter.

Equipment and installation procedures:

1.Optical fiber installation: please carefully insert the optical fiber into the optical fiber interface of the optical terminal after confirming that the optical fiber link meets the installation requirements.

2.Equipment installation: The equipment can be distinguished between transmitter and receiver, and it is stated clearly on the label and printed on the chassis of the equipment.

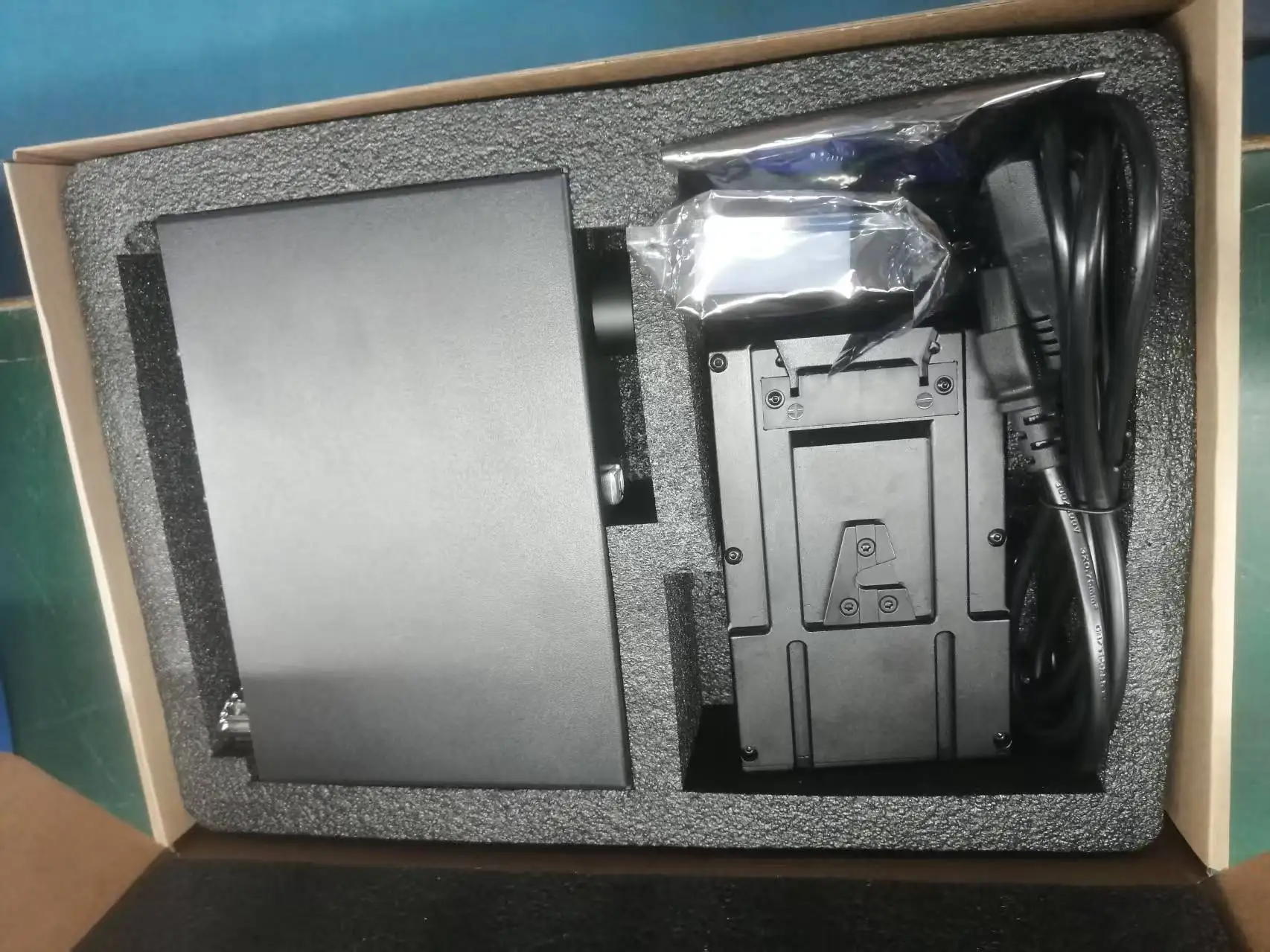

Package Reference

Production & Testing

Company Profile

Dear customer

Ho-link Technology Co., Limited; It is a high-tech enterprise integrating software and hardware R&D, production and sales; The R&D team has experienced engineers, professional teams in software, hardware, and embedded, relying on independent core technologies, following the development of technology and applications, and constantly empowering related industries. Combining optics, image processing, and cloud networking technologies, we continue to introduce products with world competitiveness.

The HO-LINK brand is widely used in digital operating rooms, radio and television recording, information release, TV studios, stage performances, command centers, data control centers, dispatching centers, multimedia conference centers, multimedia teaching, exhibitions, confidential computer rooms, industrial automation, security monitoring, road traffic, smart cities and other audio-visual fields, industrial automation fields, security weak current fields, providing diversified comprehensive solutions for many users.

HO-LINK brand marketing on five continents around the world, winning the affirmation of the majority of customers in the world.

We are happy to do OEM and develop any related products as customer design. If you have any other questions , juts feel free let me know , thanks for reading !
